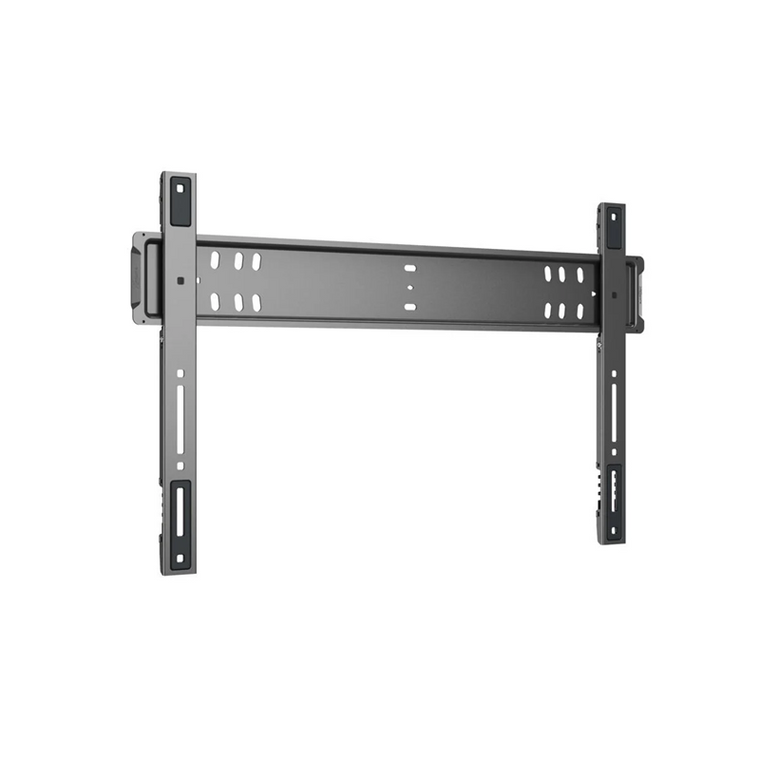

Vogel's Elite TVM 5705 Flat TV Wall Bracket - perfect for QLED, NeoQLED & OLED TVs

Elite TVM 5705 Flat TV Wall Bracket

Vogel's
SKU:
TVM5705
|
UPC:
8712285413629
Availability:
Usually delivered within 2 working days
£99.99
Seen it for less - lets us know and we'll match

Seen it for less? Let us know & we'll try & match

Vogel's Elite TVM5705 Wall Mount is available with our professional installation service

Available with our Pro Installation Service

Expert advice on TV wall mounts available instore or by phone

Choose the right wall mount first time with our expert knowledge & advice

(No reviews yet)
Current Stock:
Adding to cart… The item has been added

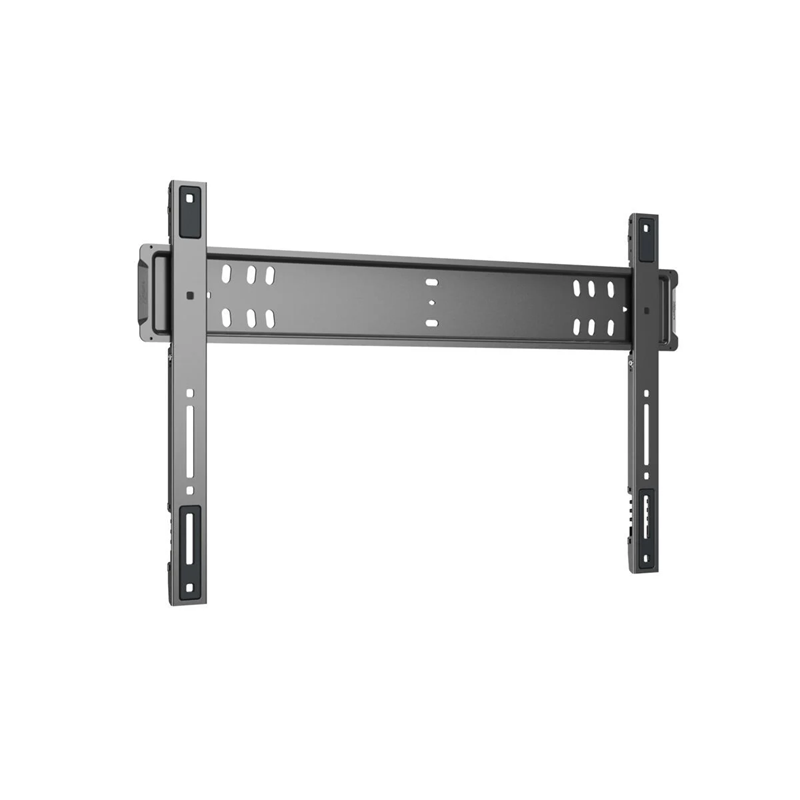

Vogel's ELITE TVM 5705 ultra-slim fixed TV wall mount bracket for 40-110 inch screens

Key Features

- Super slim wall mount - just 1.3cm from the wall

- Suitable for TVs from 40" up to 110"

- Easy to install and super secure

- New GuidanceSystem to ensure a safe installation

Sleek living room setup featuring an ultra-thin TV installation using the Vogel's TVM 5705 mount

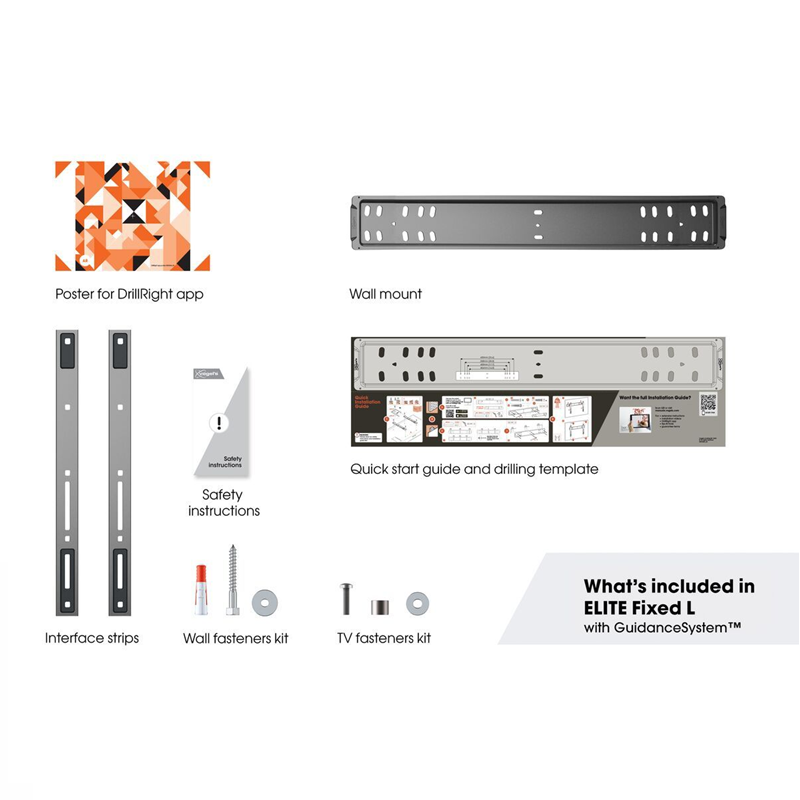

Vogel's Elite TVM 5705 Ultra Flat TV Wall Mount withi supplied accessories

Will it fit my TV?

1) Check the weight of your TV doesn't exceed 100Kg

2) Check the distance between the mounting holes on your TV. See if they match the dimensions on the VESA hole spacing details below

Please Note:

You may require different bolts and wall fixings to the type supplied.

Suplied with high quality Fisher wall fixings that are suitable for solid walls. You will need alternative fixings for stud or dot & dab walls.

The wall bracket comes with a range of bolt sizes sizes and spacers which caters for most TVs. Some TVs may require different bolts.

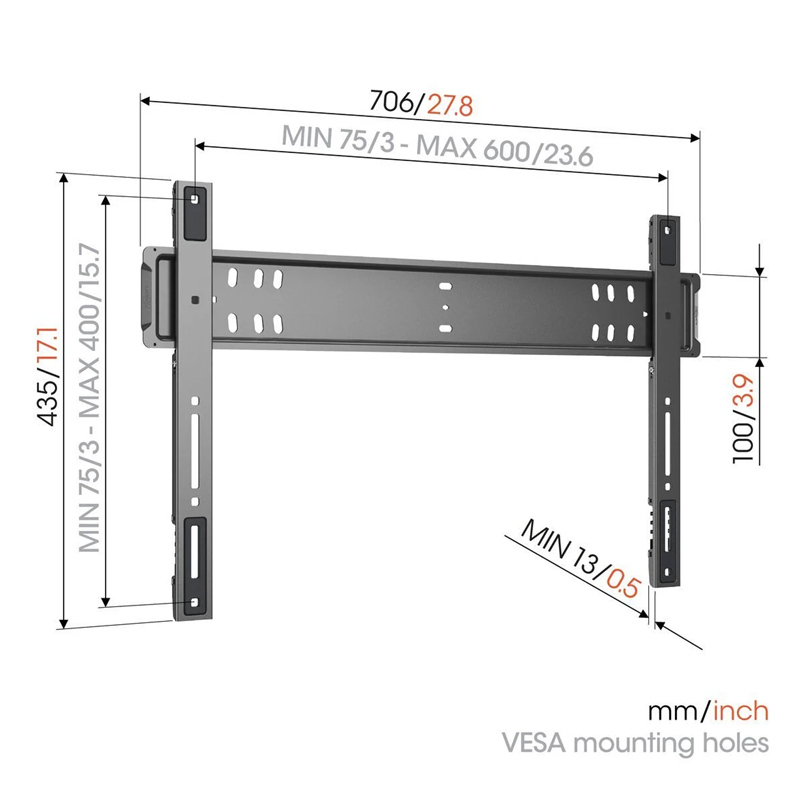

Vogel's Elite TVM 5705 TV Wall Mount VESA Hole Spacing Details

VESA Hole Spacing

Supports a wide range of hole spacing patterns including:

100x100mm / 100x200mm

200x100mm / 200x200mm / 200x300mm

300x200mm / 300x300mm

400x200mm / 400x300mm / 400x400mm

500x200mm / 500x300mm / 500x400mm

600x200mm / 600x300mm / 600x400mm

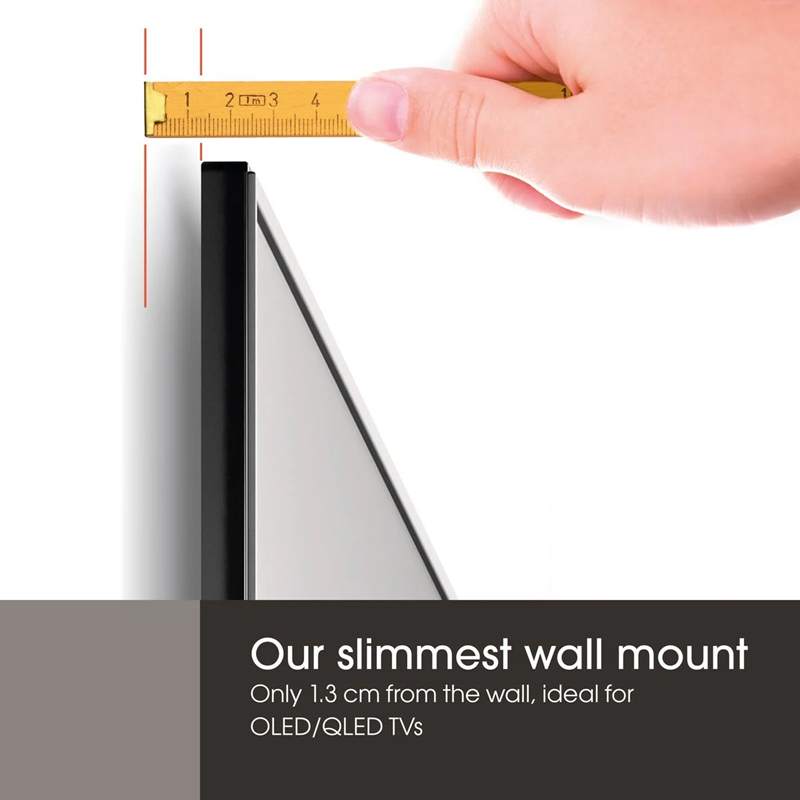

Vogel's Elite TVM5705 Ultra Slim Wall Mount is just 1.3cm thick and is ideal for OLED or QLED TVs

Ultra Slim Flat TV Wall Bracket

With modern TVs being incredibly slim this Vogel's Elite flat wall mount will ensure your TV looks great on the wall. With only a 1.3cm distance from the wall, your TV looks like a work of art on the wall. The mount combines style, strength and ease of use.

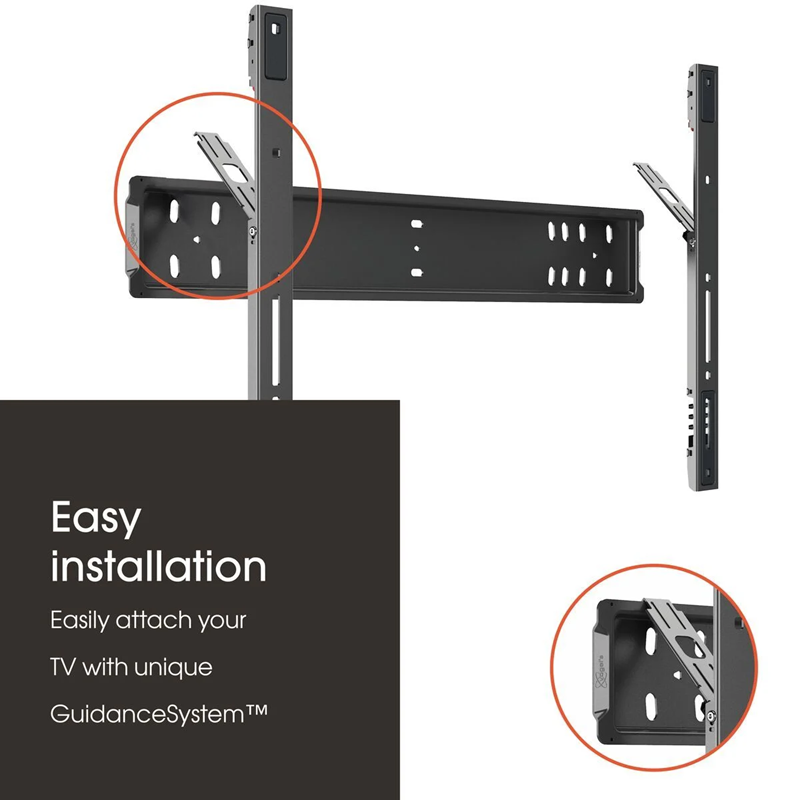

Vogel's Elite TVM5705 TV Wall Bracket is easy to install thanks to a new GuidanceSystem.

Secure mounting, smarter than ever

Thanks to the unique GuidanceSystem™ (patent pending), you can see exactly where you need to be while hanging the TV. Simply attach the TV to the wall plate.

The improved click-lock mechanism keeps your TV securely in place, without the hassle of having to remove it later. And thanks to the side lock, your TV is protected from unwanted movements, even when bumped.

Description

The Vogel's Elite TVM 5705 is the ultimate fixed flat TV wall bracket for large premium TVs — designed specifically for screens up to 110 inches, including OLED and QLED displays, where a standard bracket simply won't do. With only 1.3cm between the TV and the wall, your screen sits closer to the wall than almost any other bracket on the market, creating a stunning, picture-on-a-wall effect.

The standout feature is Vogel's patented GuidanceSystem™ — steel hook strips that attach to the back of your TV and guide it precisely onto the wall plate for easy, safe hanging. No guesswork, no dropping, no stress. Once in position, the clever Auto-ClickLoc mechanism locks the TV securely in place with a satisfying click. Side-locking provides additional security, and removal is simple — two people lift it straight up.

The extra-wide 700mm wall plate features a double row of drill holes for easy mounting on wooden studs, and integrated cable clips keep all your connections neatly out of sight. The free DrillRight AR app (iOS and Android) guides you through installation, marking exactly where to drill your first hole.

Backed by Vogel's impressive 15-year warranty, the TVM 5705 is built to last and comes complete with a drilling template, fixings and all necessary hardware.

If you'd like advice on whether this bracket is right for your TV and wall type, pop into our Fleet showroom or give us a call — we're happy to help.



Specifications



EAN single box: 8712285413629
Colour: Black
Min. screen size (inch): 40
Max. screen size (inch): 110
Max. weight load (kg): 100

Hole pattern (VESA):
100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm

Min. distance to the wall (mm): 13
Outdoor use: No
What's in the box: Wall mount, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Quick Installation Guide, DrillRight app, Drilling template
Product category: Fixed TV Wall Mount
Product series: ELITE
Guarantee: 15 years



Please note features and specifications are subject to change without prior notification. Information and technical specifications are provided for guidance only and cannot be guaranteed as accurate. Errors and omissions excepted.

Warranty
15 Year Manufacture Warranty
Additional Information
Need Advice?:
Speak to our experts on 01252 811800
Max TV Weight:
100Kg
Min VESA:
100 x 100
Max VESA:
600 x 400
Min Distance to Wall:
13mm
